CZ Engineering, Inc. Pole Trailers |
|
|
CZ Engineering, Inc. Pole Trailers |
|

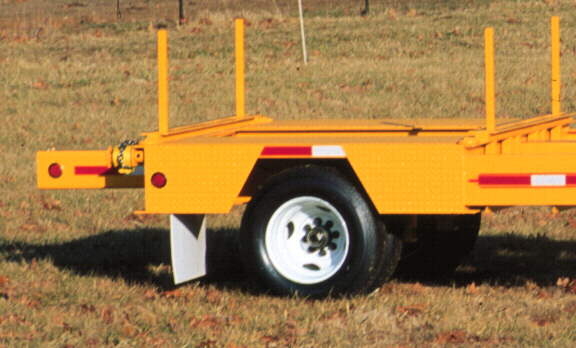

Heavy Duty Running Gear
A dual wheel axle with a 5' round beam is standard. Four tires on the ground provide maximum stability, yet the dual wheel configuration greatly reduces the scuffing and punctures associated with a tandem wheel arrangement. |
|
Almost Indestructible Frame
The Main Frame is of 14" wide flange beams in an "H" configuration. 1/8" thick tread plate form the top and sides of the 6' by 6 1/2' platform. |
|

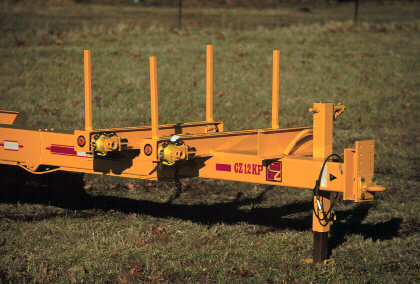

Massive Tubular Tongue
The tongue is the strongest in the industry - strong enough to carry 3800 lbs of tongue weight. Since positive tongue weight is essential for trailering stability, this also makes our tag-a-long pole trailer the safest in the industry. A dual wheel axle with a 5' round beam is standard. Four tires on the ground provide maximum stability, yet the dual wheel configuration greatly reduces the scuffing and punctures associated with a tandem wheel arrangement. |
|

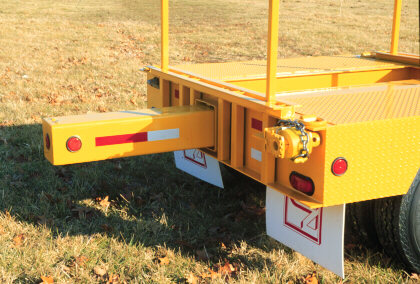

Easy Length Adjustment
The tongue glides on rollers to facilitate easy length adjustment. Since the 8" square front section does not contact the 10" square, even an unlikely bow or kink in the tongue will not prevent adjustment. Compare that to competitive trailers that can be rendered unadjustable with the smallest kink or even rust between the tubes. |
|

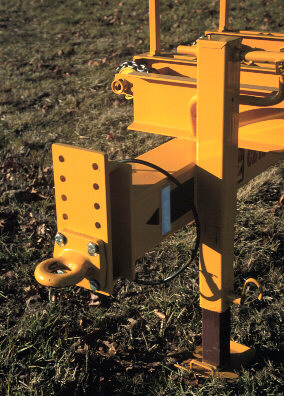

Heavy Duty Landing Gear
Since even minor inconveniences can slow you down, every detail has been considered. The rugged 12,000 lb drop leg jack is fast acting and made to take abuse. |
|

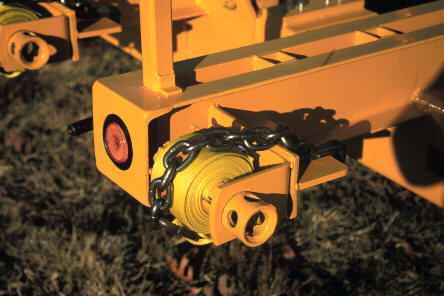

Optional Nylon Strap Winches Eight D-rings make convenient chain fastening points. Four are located at each corner of the bed and two are on each bolster. Optionally, you can get three nylon strap winches, one on each bolster and one at the end of the bed. |
|
|

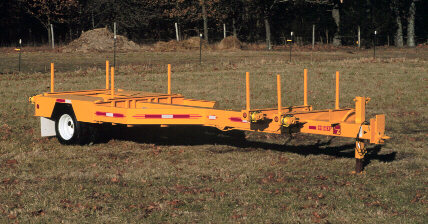

Stability and Manuverability
A properly designed pole trailer will be narrow enough and short enough to permit easy manuverability. The 6 1/2 foot width of our pole trailer is the perfect size for getting into tight spots and is safer to operate than wider trailers. |
|

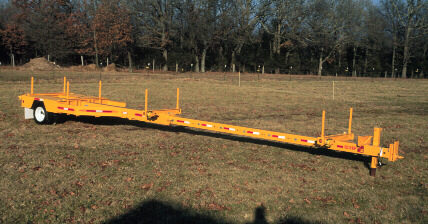

Length when you need it...
If a trailer is not long enough for the poles you are hauling, too little tongue weight will cause "fish tailing". Our trailer gives you the adjustment flexibility to balance the advantages of short trailer manuverability with the proper weight distribution required for safe operation. |
